Ultra Aluminum posts and gates: pick the right post, order the right gate, once.
Panels get the attention, but jobs go sideways at posts and gates — wrong wall thickness under a swinging leaf, a 13-foot double gate ordered without the required U-frame, hardware forgotten because it’s sold separately. This guide lays out Ultra’s post matrix, gate options, and D&D hardware with the book prices attached, so the take-off is right the first time.
Post selection: size and wall by duty
Ultra posts are square aluminum, sold as line, end, corner, or blank, with caps included. The rule of thumb: the line run takes the light wall, and anything that takes load — gates, ends, corners, wind fences — steps up in wall or in size.
| Post | Wall | Grades offered | Book price range (by length) | Use it for |
|---|---|---|---|---|
| 2″ square | .060 | Residential | $48.50–$56.75 (60″–84″) | Light residential line posts to 60″ fence |
| 2″ square | .080 | Residential, Commercial | $59.25–$87.00 (60″–108″) | The residential workhorse line post |
| 2″ square | .125 | Residential, Commercial | $78.25–$124.75 (60″–108″) | Residential gate/end/corner posts |
| 2-1/2″ square | .100 | All three grades | $79.50–$161.25 (60″–144″) | Heavier duty, industrial line posts |
| 3″ square | .125 | Commercial, Industrial | $131.00–$260.25 (72″–144″) | Commercial/industrial gates and corners |
| 4″ square (blanks only) | .125 | Commercial, Industrial, Ultrack | $191.50–$358.25 (72″–144″) | Wide gates, Adjustable Ultra Hinge, cantilever runs |
| 4″ & 6″ steel | .125 (ASTM A500) | All grades | Call for quote | The heaviest gate posts; zinc-rich prime + Powercoat finish |
Options worth knowing: double-punched (heavy-rack) posts add $4.75 each; custom routing runs $9.25 per hole; ball caps, flange covers, and welded base flanges are in the accessories book. Ultra welds base flanges to 2″ and 2-1/2″ posts with a minimum .080 wall — and on any core-drilled or plate-mounted post in freezing climates, drill the weep hole the book warns about, or the post warranty is on you.

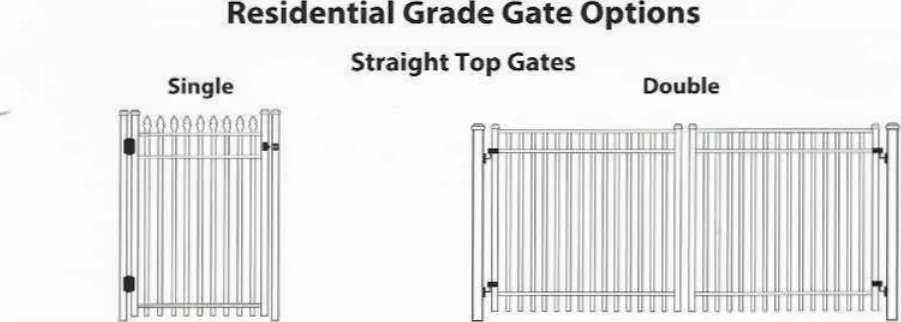

Gate styles and surcharges
Every Ultra gate is essentially made to order, matched to any panel style in single/walk and double/drive configurations. Book surcharges, identical across residential, commercial, and industrial except where noted:
| Option | Charge (book) | Notes |
|---|---|---|
| Straight top | Base gate price | Priced by style, height, and width in each grade’s gate tables |
| Arched top | +$43.25 / LF | Single or double |
| Estate | +$49.00 / sq ft | Minimum 8′ opening |
| U-frame construction | +$19.00 / LF | Required on singles over 6′ and doubles over 12′ |
| V-Trac | +$45.00 / LF res · $48.50 comm · $53.00 ind | |
| Short pickets on gate bottom | +$57.00 res · $62.25 comm · $72.50 ind, per leaf | 16″ pickets (24″ on industrial) |
| Midrail, racked gates, special sizes | Racked walk gates no charge; special sizes pro-rated, no setup fee | Racking not available on arched or estate gates |
Maximum double-gate widths: 12′ residential, 16′ commercial, 28′ industrial. Beyond a swing gate’s practical limits, the Ultrack cantilever slide-gate line runs 6′–30′ widths — ask us to price it. For grade-by-grade gate pricing context, start at the grades guide; straight-top gate leaves start at $404.50 book (residential 36″ × 36″ flat top).
Hardware: sold separately, never optional
Ultra gates ship without hinges and latches — they’re line items. Book pricing:
| Item | Book price | Notes |
|---|---|---|
| Standard hinge (aluminum) | $33.50 pair | Basic swing duty |
| D&D TruClose | $95.50 pair ($131.75 industrial) | Self-closing — the pool-gate hinge |
| D&D TruClose Multi Adjustable | $91.25 pair | Self-closing, tension adjustable |
| Adjustable Ultra Hinge | $333.50 pair | Requires 4″ posts |
| LokkLatch | $58.50 | Lockable general-purpose latch |
| LokkLatch Deluxe w/External Access Kit | $175.00 | Key access from both sides |
| LokkLatch Magnetic | $227.00 | Magnetic latching, lockable |
| MagnaLatch | $186.50 | Pool-code latch — see the pool code guide |
| Drop rod | $39.25 | Required kit for double-gate inactive leaves |
| Welded lock box | Call | Quoted per order |
Ordering checklist
- Count posts by function — line, end, corner, gate (blank) — not just by footage.
- Step the wall up at every gate; 4″ posts if the Adjustable Ultra Hinge is specified; steel by quote for the biggest swings.
- Check the 6′/12′ U-frame thresholds before pricing wide gates.
- Add hinges, latch, and drop rod to the order — they will not come with the gate.
- Oversize freight applies to long posts and gates (over 8′–10′ $250, over 10′–14′ $400 book).
Or skip the checklist: send us the drawing and we return the complete post-and-gate schedule at book pricing — account holders deduct 10%.
Gates make or break the job
